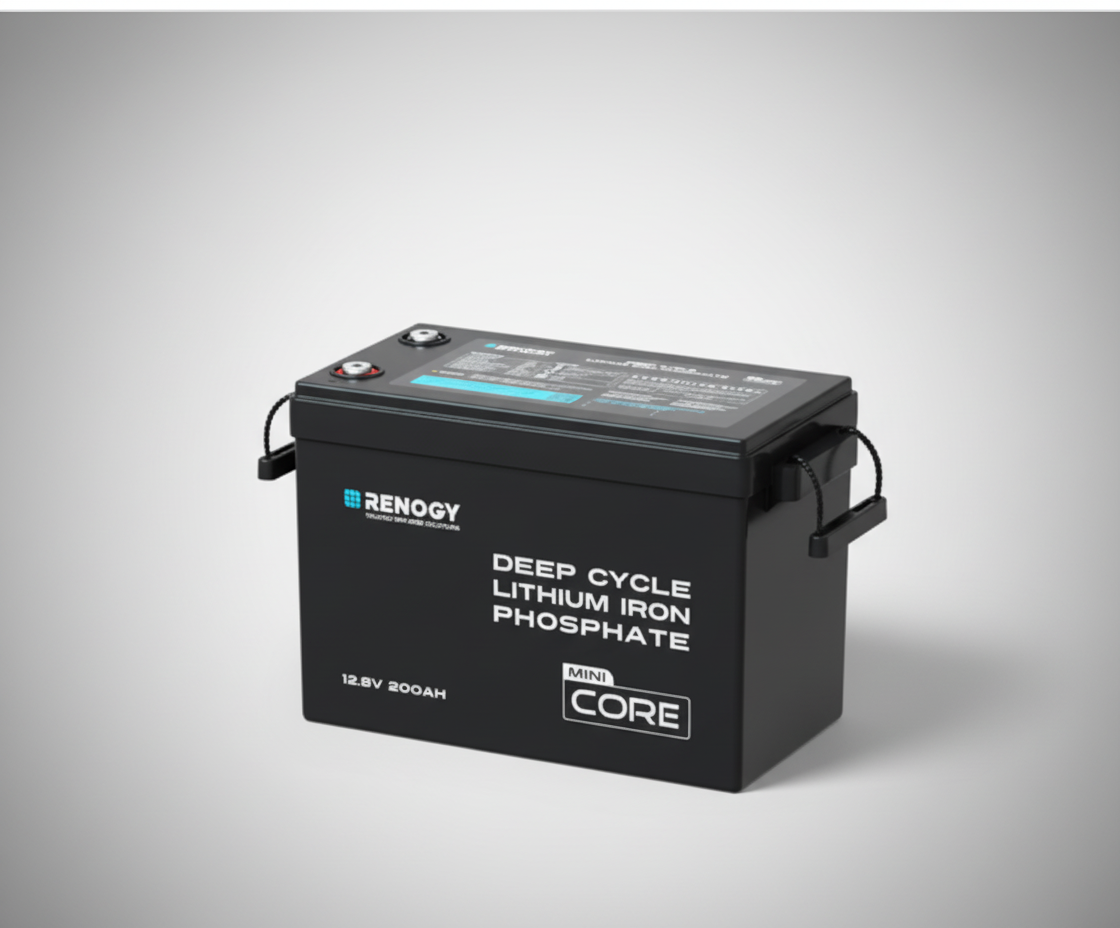

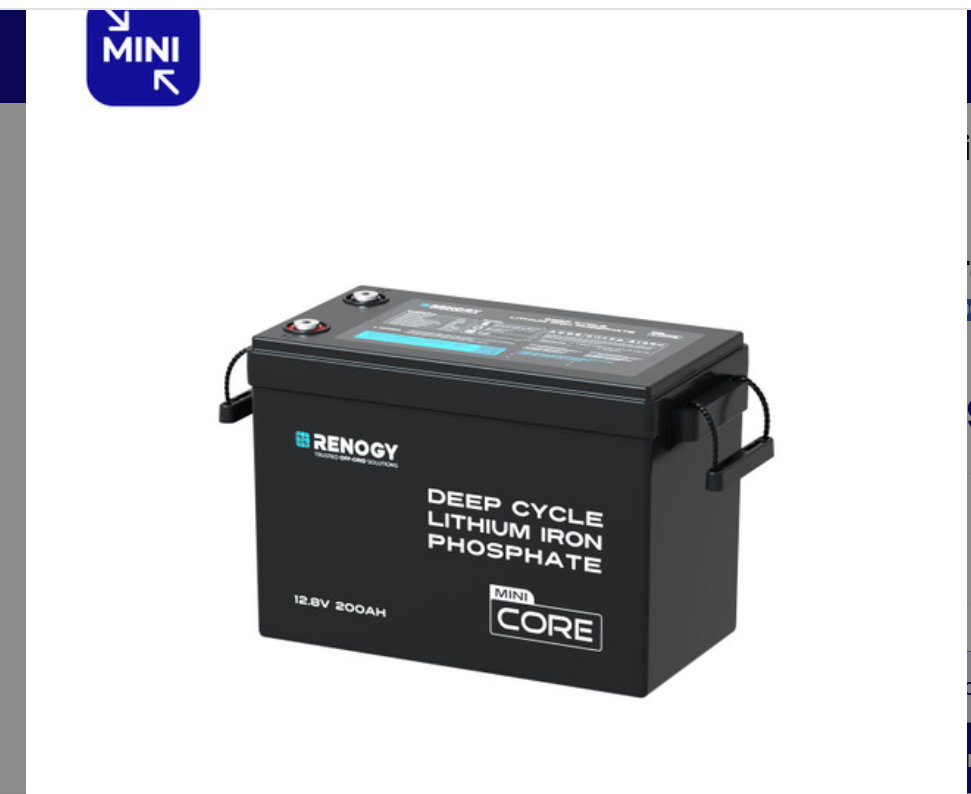

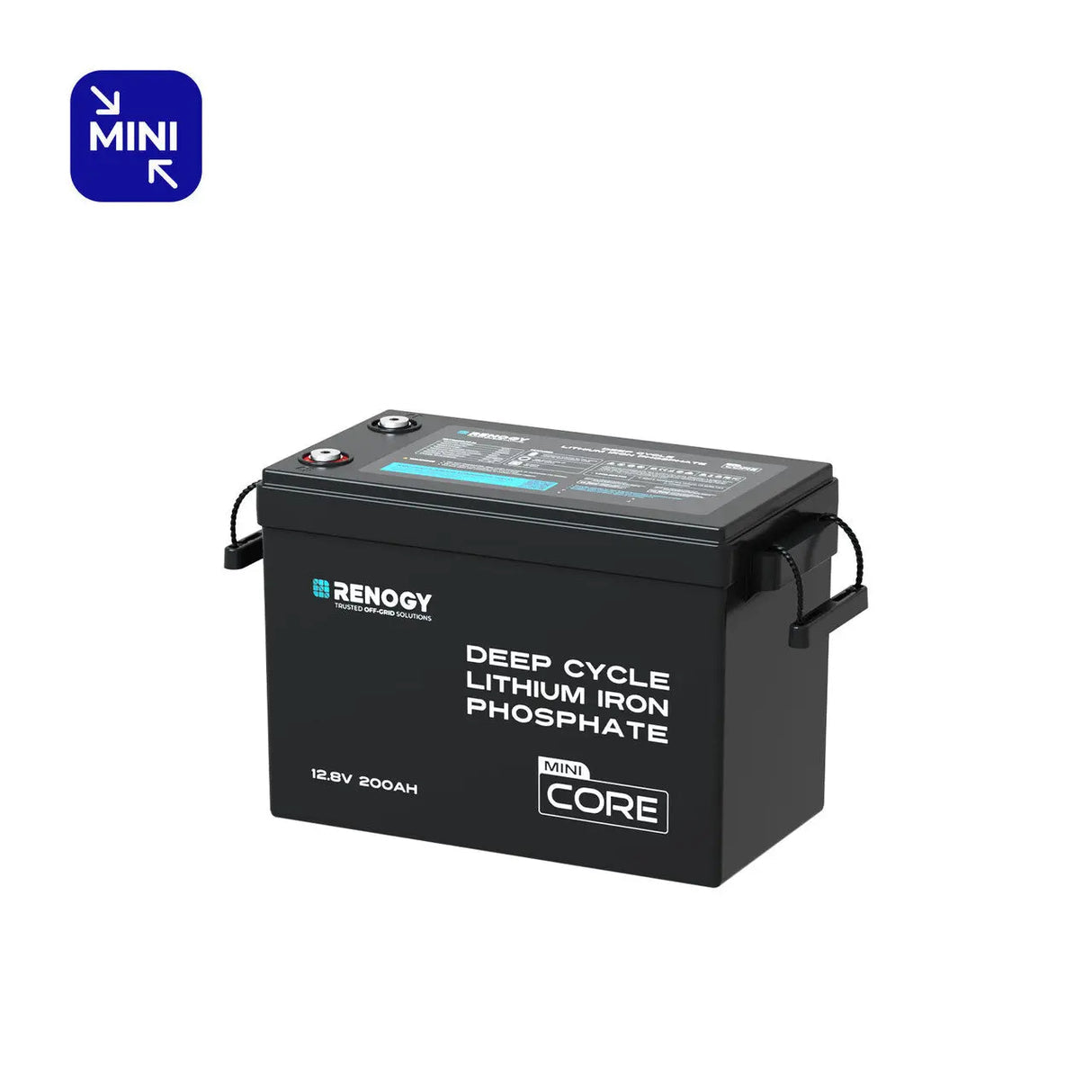

Renogy Core Mini 12V 200Ah LiFePO4 Deep Cycle Battery – Compact Cold-Weather Lithium Power

The Renogy Core Mini 12V 200Ah LiFePO4 Battery delivers compact, high-capacity off-grid power designed for RVs, vans, marine systems, and solar storage. With a space-saving design, strong cold-weather performance, and long cycle life, it provides reliable energy in demanding environments. Built with smart BMS protection and high output capability, it ensures stable, maintenance-free power wherever you go.

Key Features:

• Compact High Capacity: 200Ah (2560Wh) usable energy in a space-saving design
• Cold Weather Ready: Operates down to -4°F with low-temperature charging protection
• Long Cycle Life: 5,000+ cycles at 80% DOD for long-term reliability
• Smart 200A BMS Protection: 25+ safety protections for secure operation
• High Output Performance: 200A continuous and up to 380A peak discharge

Specifications:

• Product Name: Renogy Core Mini 12V 200Ah LiFePO4 Battery
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Capacity: 200Ah
• Energy Capacity: 2560Wh
• Weight: 42.44 lbs (19.25 kg)
• Dimensions: 15.12 × 7.64 × 9.96 in
• Continuous Discharge: 200A
• Peak Discharge: 380A (10 seconds)
• Charging Current: Up to 100A
• BMS: 200A Smart Battery Management System
• Cycle Life: 5000+ cycles @ 80% DOD
• Temperature Range: -4°F to 149°F (charging cut-off below 32°F)
• Protection Rating: IP65 (dust & water resistant)
• Expandable: Up to 4S4P (40.96kWh system capacity)
• Monitoring: Compatible with Renogy 300A shunt (app monitoring support)
• Warranty: 5 Years
